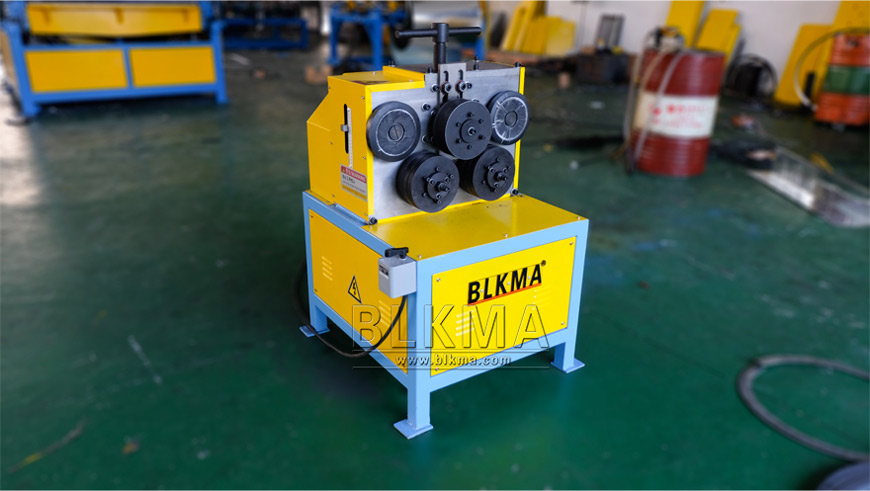

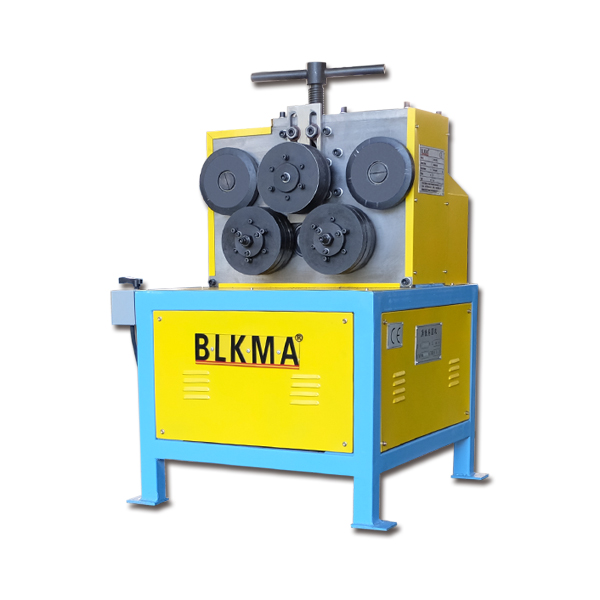

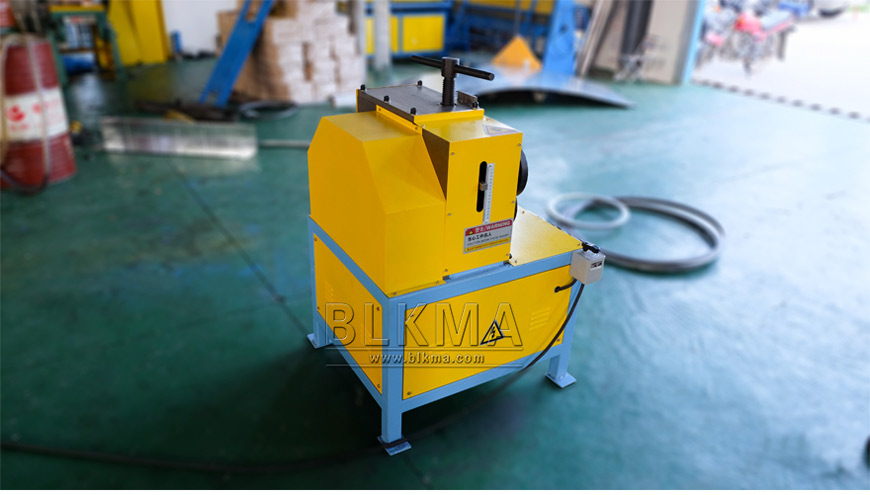

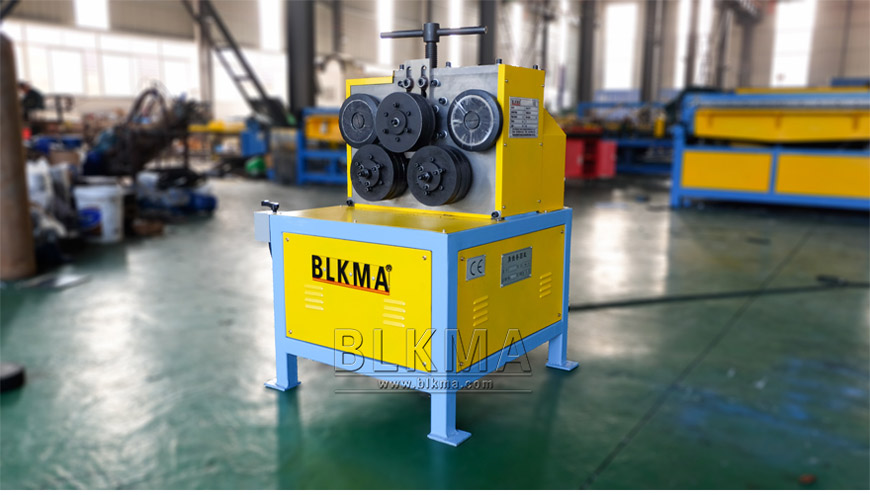

Angle Steel Round Rolling Machine

BLKMA Company Spiral duct oval machine transforms smooth and corrugated round spiral duct into the Flat-oval duct. Machine control is by PLC, and the LCD UNIT on the operator's panel stores all set parameters for easy recall by the operator when required.

Product Description
Video

Specifications of Angle Steel Round Rolling Machine

Model

Lield limit(mm)

Min diameter(mm)

Max capacity(mm)

Power(kw)

Weight(kg)

Dimensions(mm)

L*W*H

JY-50

≦245

400

L50*5

350

760*780*1150

Features of Angle Steel Round Rolling Machine

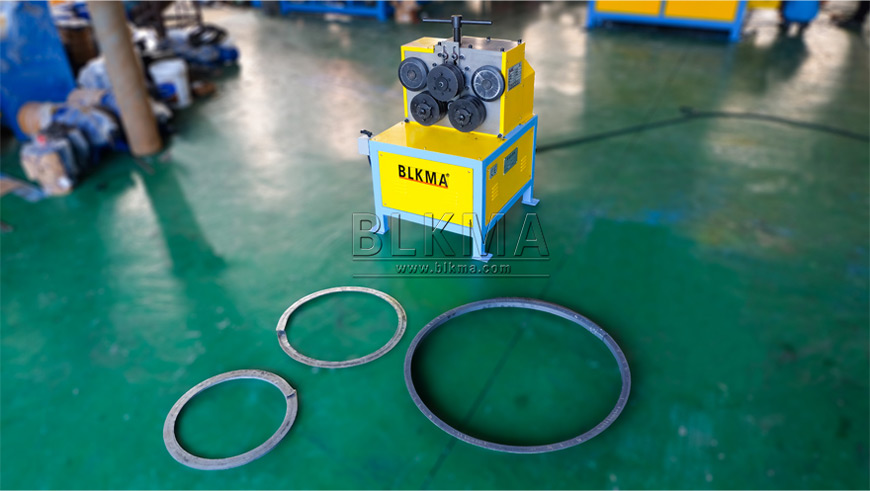

The JY-50 Angle Steel Round Rolling Machine is designed for rounding angle steel flanges and 40Cr steel, featuring overall heat treatment for enhanced durability. This versatile machine is adaptable to various needs, capable of rolling angle iron, flat iron, square steel pipes, and other steel products.

Key features include:

Adjustable Roll Gap: The three-roll gap can be easily adjusted to accommodate different materials, optimizing material usage and minimizing waste.

Wide Application: It's widely used in industries such as construction, hardware, light industry, chemical industry, and fittings.

Durable and Efficient: The compact design of this spiral duct machine, low energy consumption, and high efficiency make it a cost-effective solution. It operates quietly, is easy to install, and requires minimal maintenance.

Reliable Operation: The machine boasts strong load capacity, fast rolling speed, and a long service life, ensuring stable and reliable product quality.

Versatile Functionality: This machine is crucial for producing round ducts and ensuring secure connections. When paired with a hydraulic riveting machine, it guarantees the durability of the duct without risk of detachment.

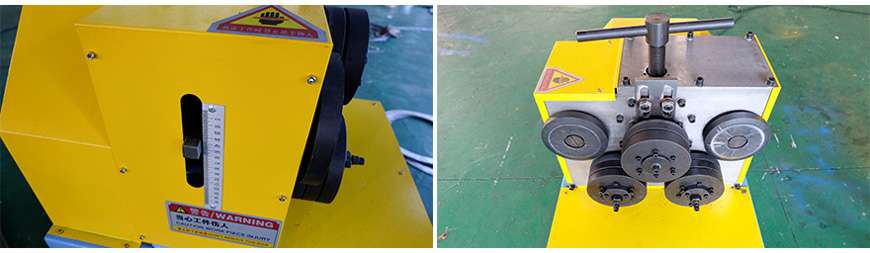

Adjustable Size: The rotating lock at the top of the machine allows for easy size adjustment. The maximum diameter it can handle is 400mm.

Machine Specifications:

Weight: 350kg

Dimensions: 760mm (Length) x 780mm (Width) x 1150mm (Height)

Why Choose BLKMA's Angle Steel Round Rolling Machine?

BLKMA is recognized for its independent R&D capabilities and strong technical expertise in product development. With CE certification and extensive export experience, our products are trusted across Southeast Asia, Europe, South America, the Middle East, and beyond. BLKMA is pride ourselves on delivering high-quality machinery at competitive prices, supported by comprehensive after-sales service.
